2.2.1 Report Satellite Health

Satellite health information is requested to aid in planning required satellite maintenance.

MG2) The SCS shall process each HR (satellite health request) command message received from the GCS.

MG2.1) An HR command message shall be the first message received after the initiation of each "Manage Satellites" transaction.

MG2.2) The SCS may receive a satellite health request message anytime during a "Manage Satellites" transaction. (Describes order during transaction.)

MG2.3) A satellite health request command message will only be accepted by the SCS during an active "Manage Satellites" transaction. (Describes condition under which an HR may be received.)

MG3) The SCS shall prepare and send an HA (satellite health acknowledgment) message to the GCS in response to an HR (satellite health request) command message.

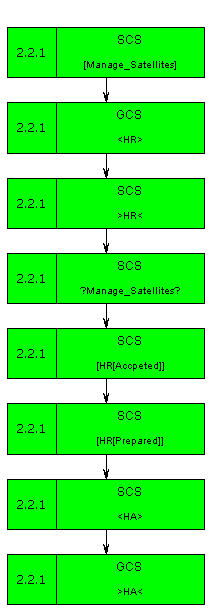

The corresponding Requirement Behavior Tree is as below:
