2.3.5 Terminating a Current Customer Time Slot

The GCS may terminate the current "Transmit Data" transaction at any time, by sending the SCS a TE (customer time slot expired) command message. When the SCS receives the TE command message, it ends the current "Transmit Data" transaction.

TE1) The SCS shall receive a TE (time slot expired) command message from the GCS when a customer data transmission time slot has expired.

TE2) Upon receipt of a TE command message, the SCS shall forward it to the GCS.

TE3) A TE command message may be received only during a valid "Transmit Data" transaction.

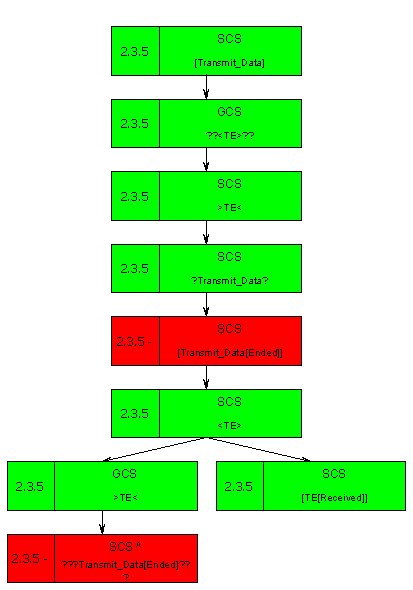

The corresponding Requirement Behavior Tree is as below:
